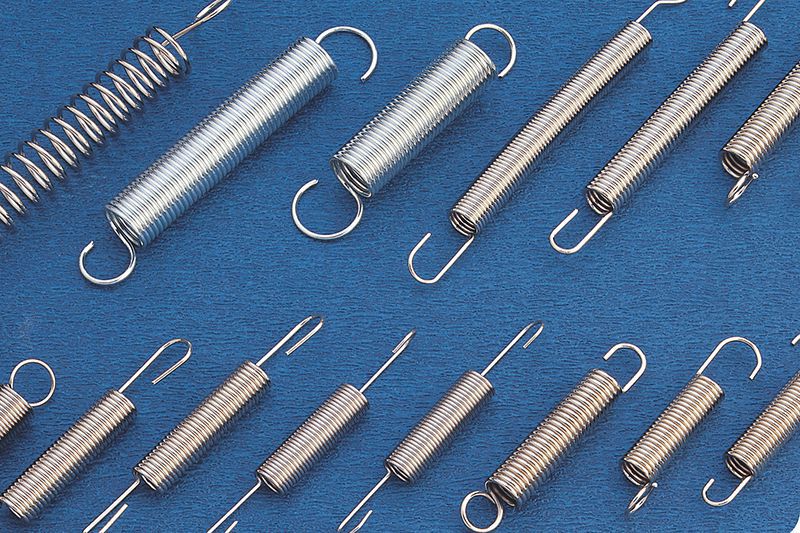

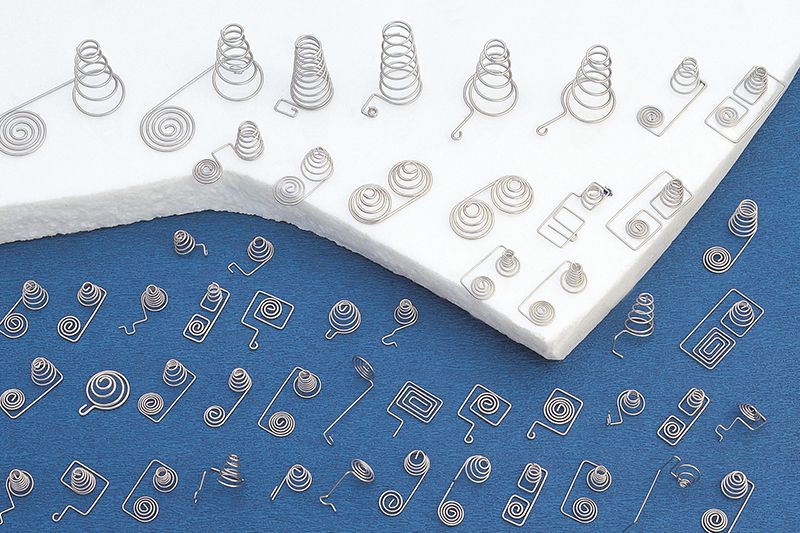

KCMCO’s 3-Axis/4-Axis CNC spring forming machine is designed for wires with a diameter of 0.2-2.0mm and 1.2-4.0mm for the production of compression spring, tension spring, single/double bodied torsion spring, scroll spring, tower spring, special-shaped spring, as well as line forming and bending forming products, and other complex products.

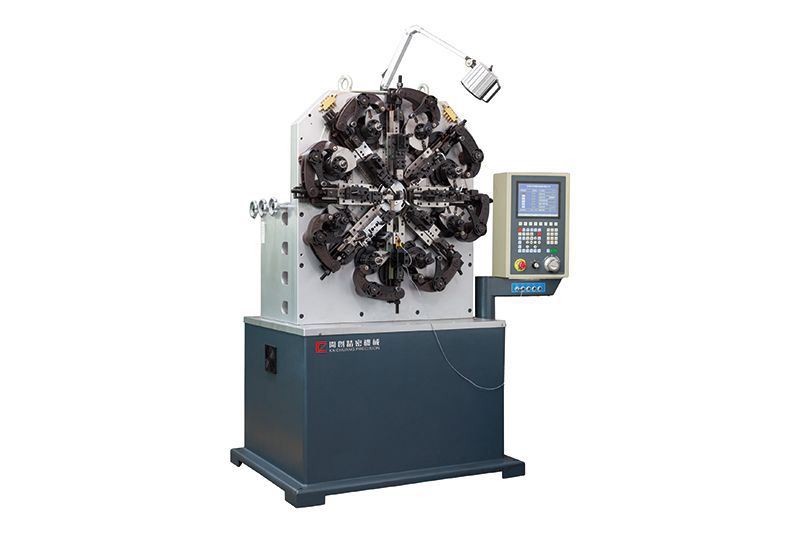

1.2-4.0mm Spring Forming Machine, CNC Control, 3-4 Axes, KCT-35W
1.2-4.0mm Spring Forming Machine, CNC Control, 3-4 Axes, KCT-35W
  • 1.2-4.0mm Spring Forming Machine, CNC Control, 3-4 Axes, KCT-35W
  • 1.2-4.0mm Spring Forming Machine, CNC Control, 3-4 Axes, KCT-35W
    • Model: KCT-35W
    • Number of Axes: 3-4 Axes
    • Wire Diameter: ⌀ 1.2-4.0mm
    • Max. Outer Diameter: ⌀ 50mm
    • Max. Feed Length: Unlimited
    • Max. Wire Feed Speed: 120m/min
    • Max. Production Rate -
    • Feed Roller Group: 2 Groups
    • Feed Servo Motor: 2.7 kW
    • Quill Servo Motor: 1.0 kW
    • Cam Servo Motor: 2.7 kW
    • Air Compressor System (Air pressure): 0.2-0.4 Pa
    • Air Compressor System (Air cylinder): 5
    • Air Compressor System (Probe): 5
    • Power: 3P 380V 50/60Hz
    • Dimension (L*W*H): 1450*1250*1900 mm
    • Weight: 1500 kg
    Request a quote

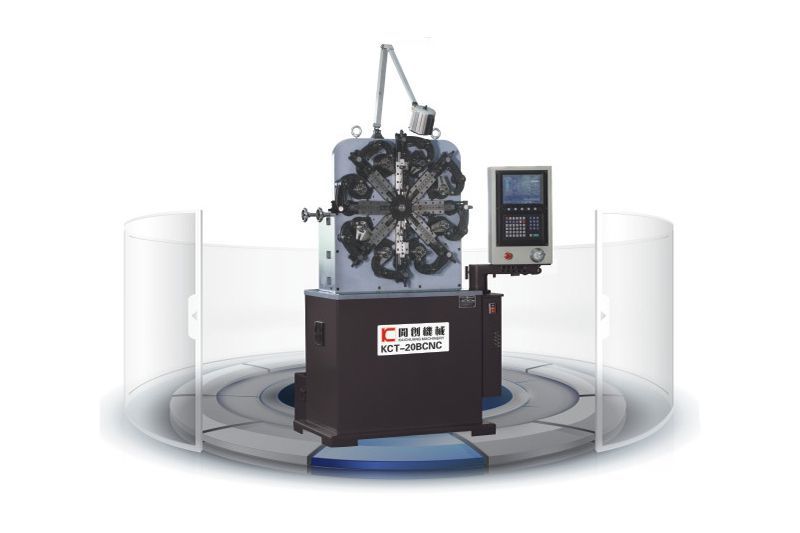

    0.2-2.5mm Spring Forming Machine, CNC Control, 3-4 Axes, KCT-20B
    0.2-2.5mm Spring Forming Machine, CNC Control, 3-4 Axes, KCT-20B
  • 0.2-2.5mm Spring Forming Machine, CNC Control, 3-4 Axes, KCT-20B
  • 1.2-4.0mm Spring Forming Machine, CNC Control, 3-4 Axes, KCT-35W
    • Model: KCT-20B
    • Number of Axis: 3-4 Axes
    • Wire Diameter: ⌀ 0.2-2.5mm
    • Max. Outer Diameter: ⌀ 50mm
    • Max. Feed Length: Unlimited
    • Max. Wire Feed Speed: 110 m/min
    • Max. Production Rate: 70 pcs/min
    • Feed Roller: 2 Groups
    • Feed Servo Motor: 2.7 kW
    • Quill Servo Motor: 1.0 kW
    • Cam Servo Motor: 2.7 kW
    • Air Compressor System (Air pressure): 0.2-0.4 Pa
    • Air Compressor System (Air cylinder): 5
    • Air Compressor System (Probe): 5
    • Power: 3P 380V 50/60Hz
    • Dimension (L*W*H): 800*1100*1750 mm
    • Weight: 1200 kg
    Request a quote
    Features
    • Through CNC code, the wire feed system and cam drive system are synchronously controlled to achieve 24-h accurate operation.
    • 3-Axis/4-Axis CNC spring former adopts Taiwan ETWOTOUCH CNC control system and Japanese Sanyo servo motor and high precision bearings.

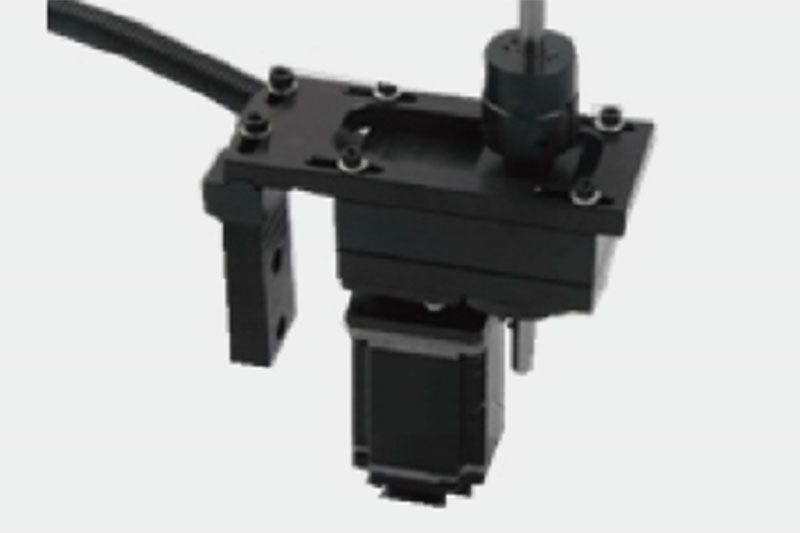

    • Customized configuration includes spinner internal/external, servo controlled left/right hand (according to customer needs).
    • This spring former is equipped with four axes of cam, feed, quill and spinner as standard (other axes can be customized).
