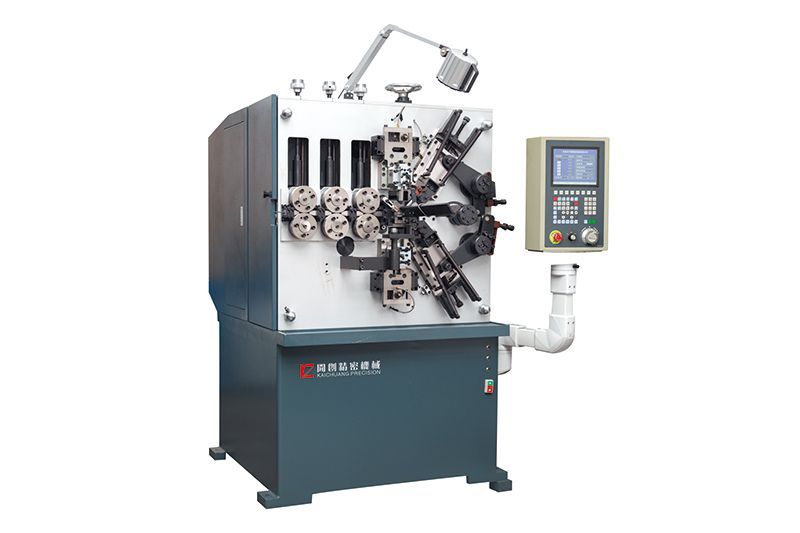

KCT-540 5-Axis high speed CNC spring coiler is capable of processing wires with a diameter of 1.6-4.5mm. It is characterized by one-minute forming, fast speed, high accuracy and low noise, which reduces adjusting time and wire cost. The standard 5 axes supplied are: feed axis, cam axis, upper cut axis, lower cut axis and pitch axis. The pitch axis is added for the pushing rod cutter, which facilities the forming of springs.
Model | KCT-540 | |
Number of Axis | 5 | |
Wire Diameter | Φ1.6-4.5mm | |
Max Outer Diameter | Φ80mm | |
Max. Wire Feed Speed | 96m/min | |
Spring Index | 3 | |
Feed Roller | 3 Groups | |
Feed Servo Motor | 5.5kW | |
Upper/lower Cutter Servo Motor | 2.7kW | |
Cam Servo Motor | 2.7kW *2 | |
Pitch Servo Motor | 1.8kW | |
Air Compressor System | Air pressure | 0.2-0.4Pa |
Air cylinder | 2 | |

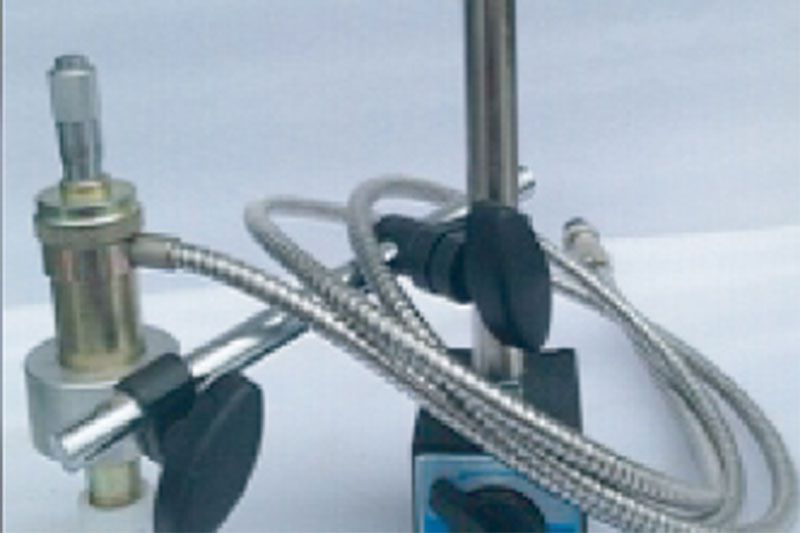

Probe | 2 | |
Power Source | 3P/380V 50/60HZ | |
Dimension (L*W*H) | 1250*1400*1850mm | |
Weight | 1900kg |
