6-Axis High Speed Spring Coiler

  • 6-Axis High Speed Spring Coiler
  • 6-Axis High Speed Spring Coiler

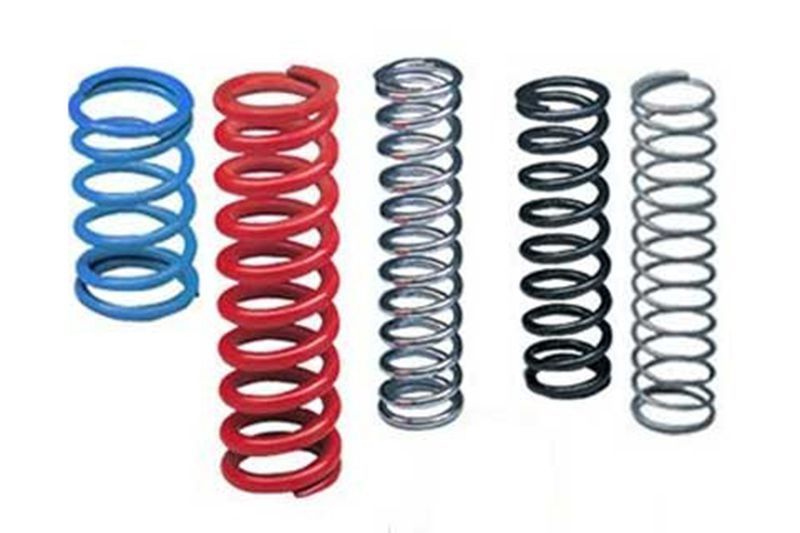

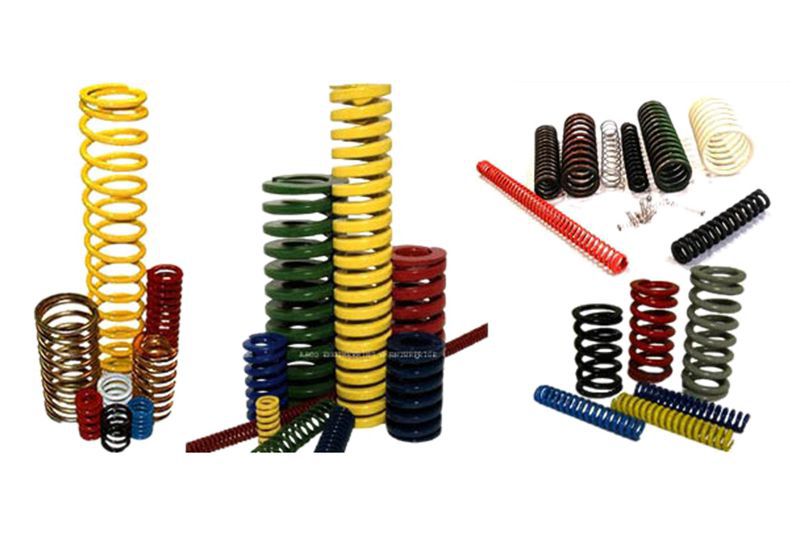

6-Axis high speed spring coiler is used to produce compression spring with wire diameters of 3.0-8.0 mm or 2.0-6.0mm. This spring coiling machine is characterized by one-minute forming, high wire feeding speed of up to 60m/min, high precision and low noise, reducing the adjusting time and wire cost.

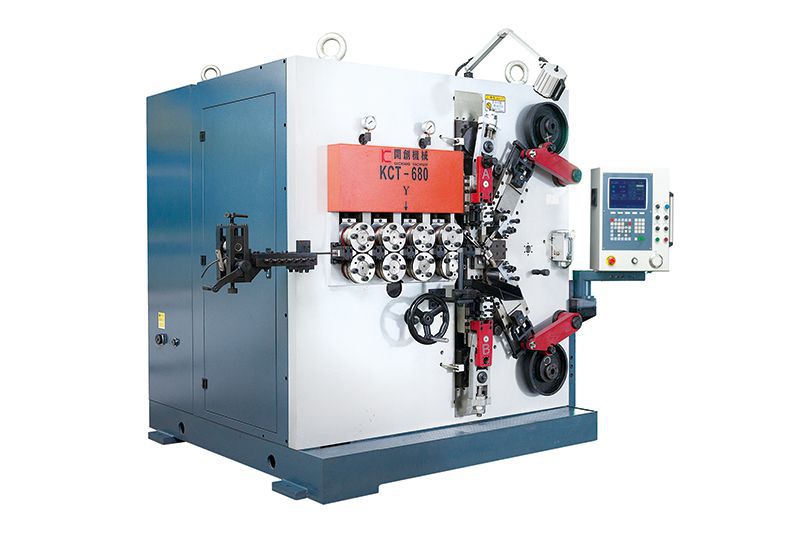

3.0-8.0mm Spring Coiler, 60m/min, 6-Axis, KCT-680
3.0-8.0mm Spring Coiler, 60m/min, 6-Axis, KCT-680
  • 3.0-8.0mm Spring Coiler, 60m/min, 6-Axis, KCT-680
  • 3.0-8.0mm Spring Coiler, 60m/min, 6-Axis, KCT-680
  • 3.0-8.0mm Spring Coiler, 60m/min, 6-Axis, KCT-680
  • 3.0-8.0mm Spring Coiler, 60m/min, 6-Axis, KCT-680
    • Model: KCT-680
    • Number of Axis: 6
    • Wire Diameter: 3.0-8.0mm
    • Max. Outer Diameter: Φ120mm
    • Max. Pitch of thread: 100mm
    • Max. Wire Feed Speed: 60m/min
    • Spring Index: 4
    • Feed Roller: 4Groups
    • Feed Servo Motor: 15kW
    • Upper/lower Cutter Servo Motor: 7kW*2
    • Cam Servo Motor: 2.7kW*2
    • Pitch Servo Motor: 2.7kW
    • Air Compressor System (Air pressure): 0.2-0.4Pa
    • Air Compressor System (Air cylinder): 2
    • Air Compressor System (Probe): 2
    • Power: 3P 380V 50/60Hz
    • Dimension (L*W*H): 2000*2100*2200mm
    • Weight: 6500kg
    Request a quote
    2.0-6.0mm Spring Coiler, 60m/min, 6-Axis, KCT-660
    2.0-6.0mm Spring Coiler, 60m/min, 6-Axis, KCT-660
  • 2.0-6.0mm Spring Coiler, 60m/min, 6-Axis, KCT-660
  • 3.0-8.0mm Spring Coiler, 60m/min, 6-Axis, KCT-680
  • 3.0-8.0mm Spring Coiler, 60m/min, 6-Axis, KCT-680
  • 3.0-8.0mm Spring Coiler, 60m/min, 6-Axis, KCT-680
    • Model: KCT-660
    • Number of Axis: 6
    • Wire Diameter: 2.0-6.0mm
    • Max. Outer Diameter: Φ110mm
    • Max. Pitch of thread: 80mm
    • Max. Wire Feed Speed: 60m/min
    • Spring Index: 3
    • Feed Roller: 3Groups
    • Feed Servo Motor: 7.5kW
    • Upper/lower Cutter Servo Motor: 5.5kW *2
    • Cam Servo Motor: 2.7kW*2
    • Pitch Servo Motor: 2.0kW
    • Air Compressor System (Air pressure): 0.2-0.4Pa
    • Air Compressor System (Air cylinder): 2
    • Air Compressor System (Probe): 2
    • Power: 3P 380V 50/60Hz
    • Dimension (L*W*H): 1750*1900*2100mm
    • Weight: 6000KG
    Request a quote
    Features

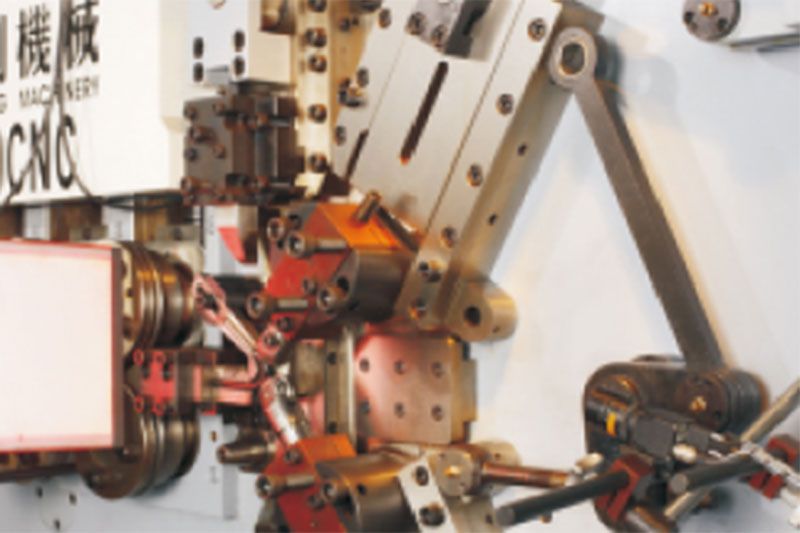

    • This spring coiler supports straight, diagonal and swing cutting.
    • Six Japanese Yaskawa servo motors and Taiwan’s CNC control system allows the axes to operate independently or synchronously.

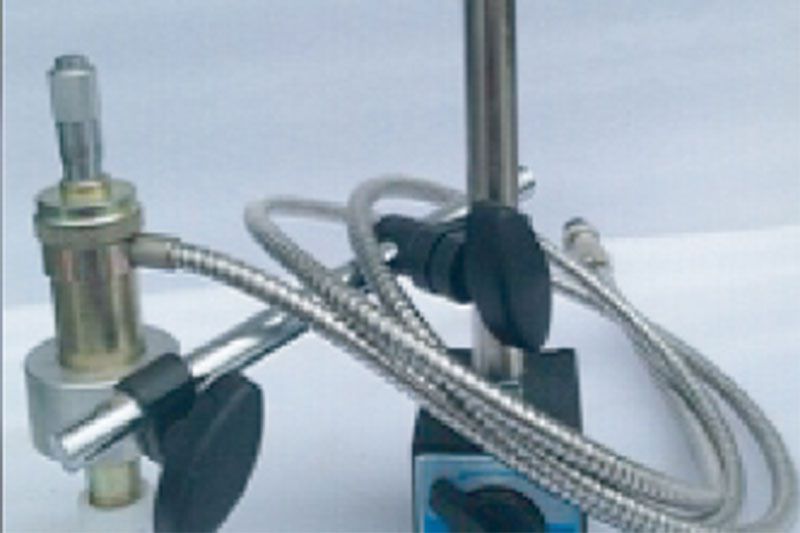

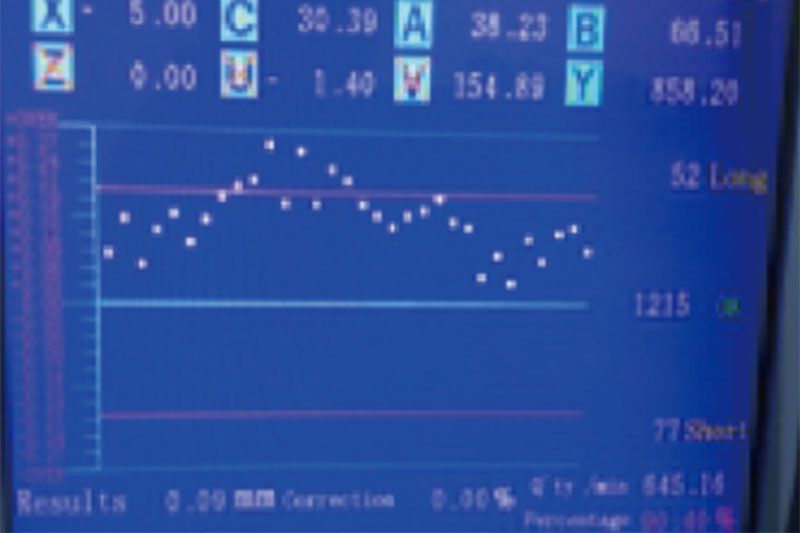

    • Length detection unit with high-definition camera.
