8-Axis High Speed Spring Coiler

  • 8-Axis High Speed Spring Coiler
  • 8-Axis High Speed Spring Coiler

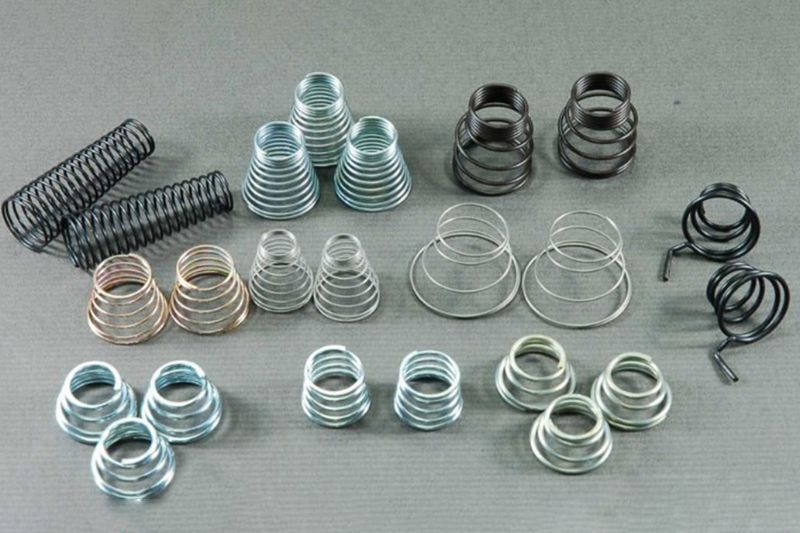

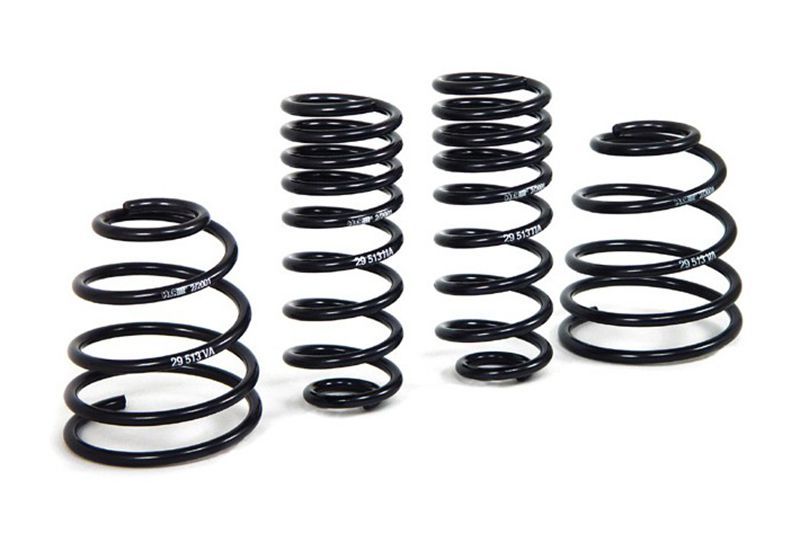

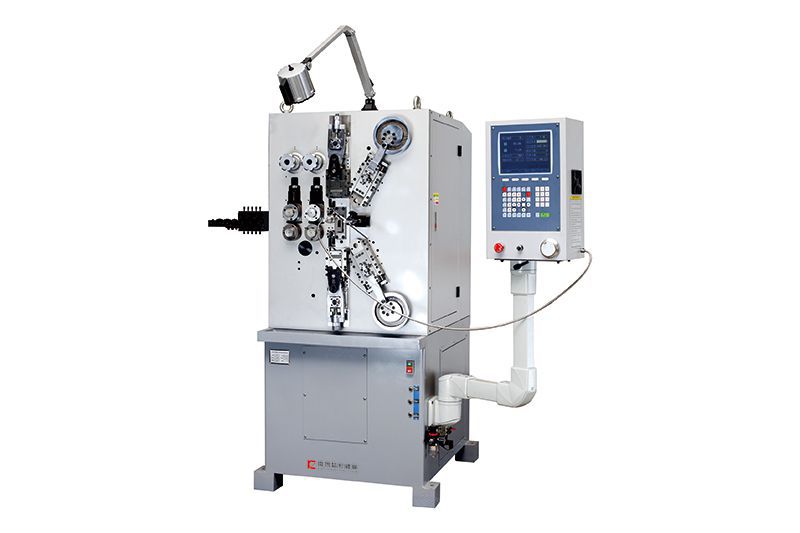

8-Axis high speed spring coiler adopts eight Japanese servo motors and Taiwan CNC control system to enable the axes to operate independently or synchronously. It is mainly used to produce compression springs with wire diameters ranging from 0.8 to 3.0mm or 0.15 to 1.0mm. The maximum wire feeding speed is up to 300m/min. This spring coiler features high precision, low noise, reduced adjusting time and saved wire cost.

0.8-3.0mm Spring Coiling Machine, 280m/min, 8-Axis, KCT-826
0.8-3.0mm Spring Coiling Machine, 280m/min, 8-Axis, KCT-826
  • 0.8-3.0mm Spring Coiling Machine, 280m/min, 8-Axis, KCT-826
  • 0.8-3.0mm Spring Coiling Machine, 280m/min, 8-Axis, KCT-826
  • 0.8-3.0mm Spring Coiling Machine, 280m/min, 8-Axis, KCT-826
  • 0.8-3.0mm Spring Coiling Machine, 280m/min, 8-Axis, KCT-826
    • Model: KCT-826M
    • Number of Axis: 8
    • Wire Diameter: Φ 0.8-3.0mm
    • Max. Outer Diameter: Φ70mm
    • Max. Pitch of thread: 65mm
    • Max. Wire Feed Speed: 280m/min
    • Spring Index: 3
    • Feed Roller: 2Groups
    • Feed Servo Motor: 4.4kW
    • Upper/lower Cutter Servo Motor: 1.3kW*2
    • Cam Servo Motor: 0.85Kw *2
    • Pitch Servo Motor: 0.75kW
    • Mandrel Moving Up/down Servo Motor: 1.0kW
    • Mandrel Return Servo Motor: 1.0kW
    • Air Compressor System (Air pressure): 0.2-0.4Pa
    • Air Compressor System (Air cylinder): 2

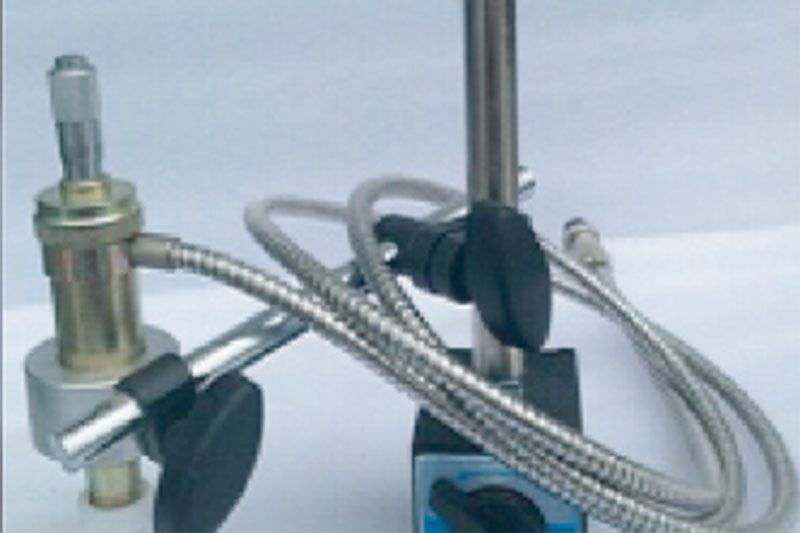

    • Air Compressor System (Probe): 2
    • Power: 3P/380V 50/60HZ
    • Dimension (L*W*H): 1000*1400*1900mm
    • Weight: 1200kg
    Request a quote
    0.15-1.0mm Spring Coiling Machine, 300m/min, 8-Axis, KCT-808
    0.15-1.0mm Spring Coiling Machine, 300m/min, 8-Axis, KCT-808
  • 0.15-1.0mm Spring Coiling Machine, 300m/min, 8-Axis, KCT-808
  • 0.8-3.0mm Spring Coiling Machine, 280m/min, 8-Axis, KCT-826
  • 0.8-3.0mm Spring Coiling Machine, 280m/min, 8-Axis, KCT-826
    • Model: KCT-808
    • Number of Axis: 8
    • Wire Diameter: Φ0.15-1.0mm
    • Max. Outer Diameter: Φ25mm
    • Max. Pitch of Spring: 30mm
    • Max. Wire Feed Speed: 300m/min
    • Spring Index: 3
    • Feed Roller: 1Group
    • Feed Servo Motor: 1.8kW
    • Upper/lower Cutter Servo Motor: 0.75kW *2
    • Cam Servo Motor: 0.4Kw *2
    • Pitch Servo Motor: 0.75kW
    • Mandrel Moving Up/down Servo Motor: 0.75kW
    • Mandrel Return Servo Motor: 0.4kW
    • Air Compressor System (Air pressure): 0.2-0.4Pa
    • Air Compressor System (Air cylinder): 2
    • Air Compressor System (Probe): 2
    • Power: 3P/380V 50/60HZ
    • Dimension (L*W*H): 1000*1000*1700mm
    • Weight: 1000kg
    Request a quote
    Features

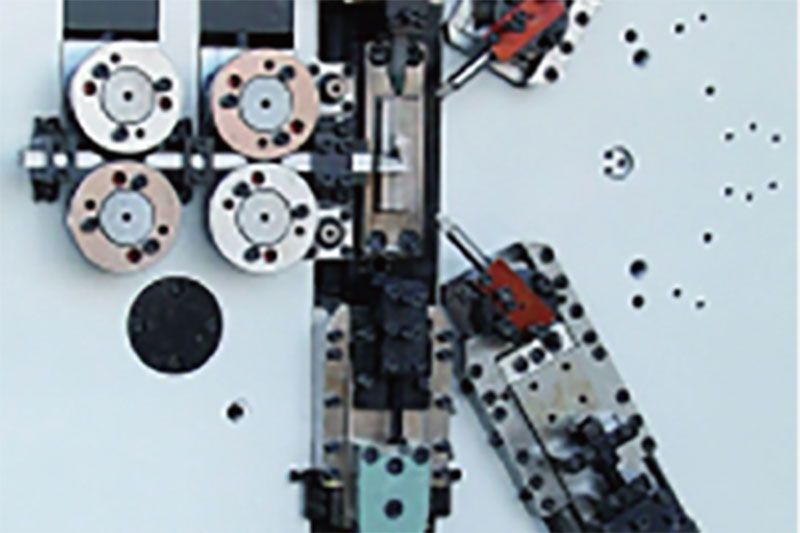

    • This spring coiler supports straight, diagonal and swing cutting.
    • Eight Japanese Yaskawa servo motors and Taiwan’s CNC control system allow the axes to operate independently or synchronously.

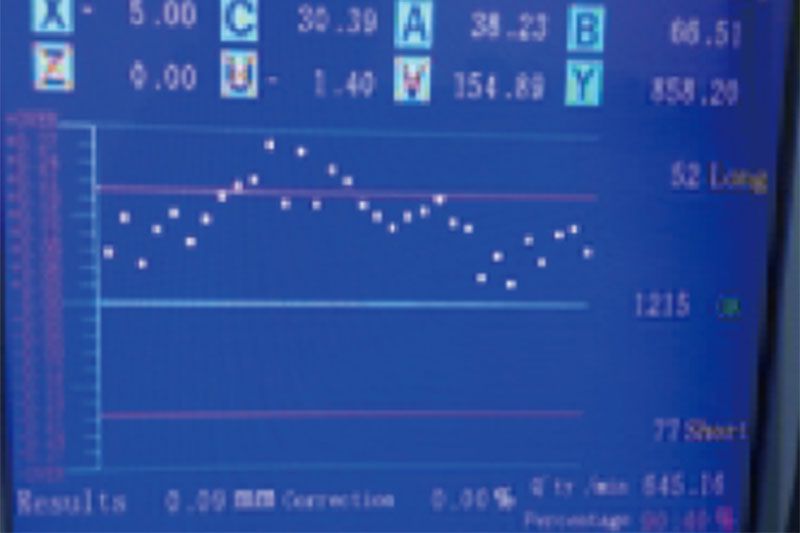

    • Length detection unit with high-definition camera.
    • One-minute forming performance: under the condition of ensuring speed, accuracy and performance, the noise is minimized.
