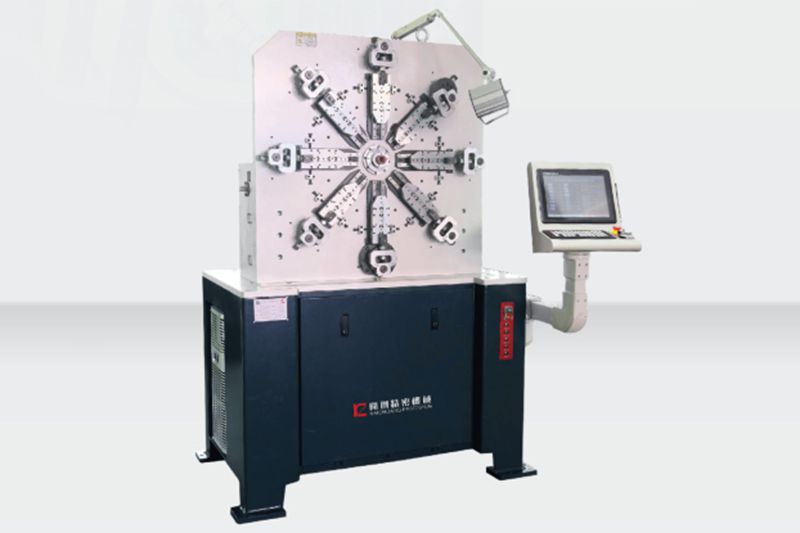

10-Axis CNC Spring Making Machine

0.2-2.0mm Camless CNC Spring Forming Machine, KCT-1020WZ

10-Axis CNC Spring Making Machine
  • 10-Axis CNC Spring Making Machine
  • 10-Axis CNC Spring Making Machine
  • 10-Axis CNC Spring Making Machine

    • KTC-1020WZ 10 axis camless CNC spring forming machine which is upgraded based on our traditional 3 axis cam type spring former. With wire size range of ⌀0.2-2.0mm, the spring manufacturing machine is suitable for the production of a variety of precision compression springs, tension springs, torsion springs, scroll flat-section springs, tower springs, flat springs, shaped springs and wire forms, etc.

    These springs are widely used in many industries including electronics, toys, office consumables, medical equipment, fixture, automotive, defense and aerospace. Comparing with the traditional cam type spring machine, the camless spring forming machine features easier operation, and its adjustment speed is increased by more than 50%, which greatly improves the working efficiency.

    Request a quote
    Specifications
    Model KCT-1020WZ
    Number of Axes 10
    Wire Diameter Φ0.2-2.0mm
    Max. Wire Feed Speed 120m/min
    Spring Index 3
    Feed Roller Group 2 Groups
    Feed Servo Motor 2.9kW
    Quill Servo Motor 1.0kW
    Former Servo Motor 0.85kW *8
    Spinner Servo Motor 0.4kW

    Air Compressor System    		 Air Pressure 0.2-0.4Pa
    Air Cylinder 5
    Probe 5
    Power 3P/380V 50/60Hz
    Dimension (L*W*H) 1500*1160*1800mm
    Weight 1500kg
    Features
    • Max. 16 axes
    • All axes work independently.
    • Linux system
    • Japanese servo motor
    • Remote monitoring
    • USB port
    • Optional servo spinner
    • Optional servo cutter
